LinkItemName

LinkItemName
is an option of LoadAssembly function that specifies link names for building the kinematic graph of the linkage.
  • LinkItemName is generated using a base string and an index iterator. The default base string is "Item", wich result link names { "Item001","Item002",..}.
  • Link names can be extracted from the file names using StringExpression substitution rule. In this case link names are extracted using StringCases function.
EXAMPLESCLOSE ALL
Basic Examples   (1)
Load the LinkageDesigner package
In[1]:=
Click for copyable input
Select a list of file names storing the CAD files of the parts
In[2]:=
Click for copyable input
Out[2]=
Load a valve assembly from stl files using indexed string rooted in "Part" as link names
In[3]:=
Click for copyable input
Out[3]=

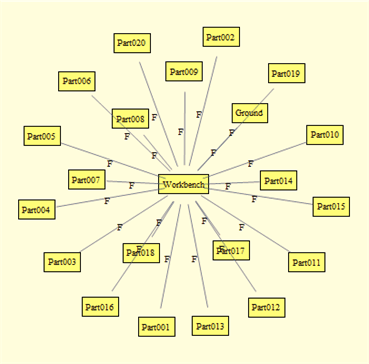

Display the kinematic graph of the linkage
In[4]:=
Click for copyable input
In[5]:=
Click for copyable input
Link names can be extracted from the file names using StringExpression substitution rule. In this case link names are extracted using StringCases function:
In[6]:=
Click for copyable input
Out[6]=
Load a valve assembly from stl files using StringExpression for naming the links
In[7]:=
Click for copyable input
Out[7]=

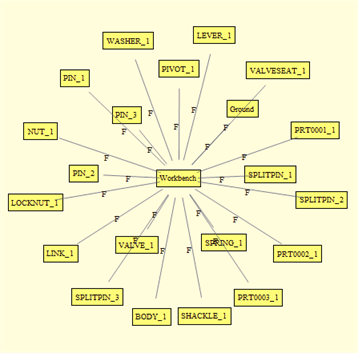

Display the kinematic graph of the linkage
In[8]:=
Click for copyable input
In[9]:=
Click for copyable input
